金联宇升降机专用电缆RTPU是什么电缆？

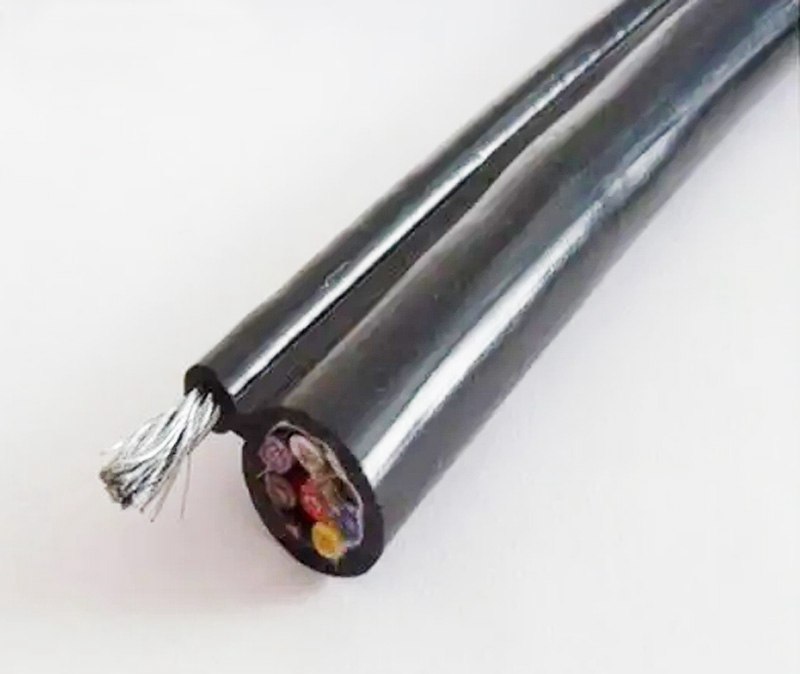

金联宇升降机专用电缆

RTPU升降机专用电缆

产品规范 Product standard:企业规范 Enterprise standard

适用范围 Application

本产品适用于各类升降机供电电缆、操控电缆，如大型塔吊，卷扣机，集装箱专用铲车，修建用的露天升降电梯。是国内新式的电缆产品，具有杰出的耐曲折性，比通用橡套电缆高出3倍。其工作温度为-50℃至+100℃。是各曲折场合运用的优选电缆，电缆按德国DIN VDE规范出产，并且归于环保产品（ROHS规范）。

This product is suitable for power suppply cable and control cable of all kinds of lifter,e.g. large tower crane,windlass,special special forklift of container,elevator at open air for construction. It is domestic new type cable product and possesses good bend resistance property which is three times than that of ordinary cable. Its temperature of work will be -50℃~+100℃. It is optimal selection for use at various bent fields. The cable is produced in accordance with DIN VDE. Germany and belongs environmental product {ROHS standerd}.http://www.anhdl.com

类型、标准、额外电压450/750v

Type、specification、Rated Voltage:450/750v

类型 Tpye	芯线数目×横截面 Core×Corss section n×mm2	单芯铜丝最大直径 Max diameter of single copper wire mm	外径±5％ Outer diameter ±5％ mm	含铜量 Copper weight per Km Kg/km	电缆分量 Weight of cable Kg/km
RTPU	2×0.75	0.15	5.6	14.4	39
RTPU	3×0.75	0.15	5.9	21.6	48
RTPU	4×0.75	0.15	6.4	28.8	58
RTPU	5×0.75	0.15	7.1	36	73
RTPU	7×0.75	0.15	7.9	50.4	93
RTPU	10×0.75	0.15	10.2	72	132
RTPU	12×0.75	0.15	10.5	86.4	152
RTPU	18×0.75	0.15	12.5	129.6	225
RTPU	2×1.00	0.15	5.8	19.2	45
RTPU	3×1.00	0.15	6.1	28.8	55
RTPU	4×1.00	0.15	6.7	38.4	68
RTPU	5×1.00	0.15	7.3	48	85
RTPU	7×1.00	0.15	8.2	67.2	110
RTPU	10×1.00	0.15	10.6	96	162
RTPU	12×1.00	0.15http://www.anhdl.com	10.9	115.2	180
RTPU	18×1.00	0.15	13	172.8	267
RTPU	25×1.00	0.15	15.7	240	358
RTPU	2×1.50	0.15	6.7	28.8	61
RTPU	3×1.50	0.15	7.1	43.2	76
RTPU	4×1.50	0.15	7.9	57.6	96
RTPU	5×1.50	0.15	8.8	72	123
RTPU	7×1.50	0.15	9.6	100.8	155
RTPU	10×1.50	0.15	12.6	144	223
RTPU	12×1.50	0.15	13	172.8	258
RTPU	18×1.50	0.15	15.6	259.2	386
RTPU	25×1.50	0.15	18.8	360	523
RTPU	2×2.5	0.15	8.2	48	95
RTPU	3×2.5	0.15	8.7	72	120
RTPU	4×2.5	0.15	9.5	96	149
RTPU	5×2.5	0.15	10.8	120	192
RTPU	7×2.5	0.15	11.8	168	245
RTPU	10×2.5	0.15	15.4	240	350
RTPU	12×2.5	0.15	15.9	288	406
RTPU	18×2.5	0.15	18.8	432	598

类型、标准、额外电压450/750v

Type、specification、Rated Voltage:450/750v

类型 Tpye	规格 Specification mm2	绝缘厚度 Insulation Thickness mm2	护套厚度 Sheath Thickness mm2	电缆外径 Outer diametre of cable mm	20℃导体最大直流电阻 Max.D.C.resistance of conductor at 20℃ Ω/km
RTPU	3×6+1×4	1/1	2.2	16	3.3
RTPU	3×10+1×6	1.2/1	3	20	1.91
RTPU	3×16+1×6	1.2/1	3.5	22	1.21
RTPU	3×25+1×10	1.4/1.2	4	28	0.78
RTPU	3×35+1×10	1.4/1.2	4	30	0.554
RTPU	3×50+1×16	1.6/1.4	5	36	0.386
RTPU	3×70+1×25	1.6/1.4	5	40	0.272
RTPU	3×6+2×4	1/1	2.2	17	3.3
RTPU	3×10+2×6	1.2/1	3	22	1.91
RTPU	3×16+2×6	1.2/1	3.5	26	1.21
RTPU	3×25+2×10	1.4/1.2	4	30	0.78
RTPU	3×35+2×10	1.4/1.2	4	34	0.564
RTPU	3×50+2×16	1.6/1.4	5	40	0.386
RTPU	3×70+2×25	1.6/1.4	5	45	0.272

类型、标准、额外电压450/750v

Type、specification、Rated Voltage:450/750v

类型 Tpye	芯线数目×横截面 Core×Corss section n×mm2	单芯铜丝最大直径 Max diameter of single copper wire mm	外径±5％ Outer diameter ±5％ mm	含铜量 Copper weight per Km Kg/km	电缆分量 Weight of cable Kg/km
RTPU	3×4.00	0.20	10.4	115.2	181
RTPU	4×4.00	0.20	11.3	153.6	225
RTPU	5×4.00	0.20	12.7	192	285
RTPU	7×4.00	0.20	13.8	268.8	365
RTPU	3×6.00	0.20	11.6	172.8	249
RTPU	4×6.00	0.20	12.7	230.4	312
RTPU	5×6.00	0.20	14	288	389
RTPU	7×6.00	0.20	15.7	403.2	515
RTPU	4×10.0	0.20	18.8	384	595
RTPU	5×10.0	0.20	20.8	480	743
RTPU	7×10.0	0.20	23.2	672	995
RTPU	4×16.0	0.20	21.6	614.4	904
RTPU	5×16.0	0.20	24.3	768	1146
RTPU	7×16.0	0.20	26.6	1075.2	1486
RTPU	2×25.0	0.20	22.4	480	833
RTPU	4×25.0	0.20	26.6	960	1384
RTPU	5×25.0	0.20	29.5	1200	1726
RTPU	3×35.0	0.20	26.8	1008	1436
RTPU	4×35.0	0.20	29.5	1344	1819
